Resizing Grid Columns and Changing Grid Settings

You can adjust the width of grid columns and cells by dragging the column separators or by changing the grid settings.

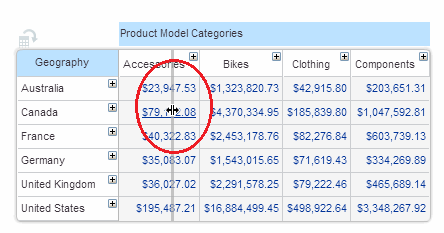

To resize columns by dragging:

Rest the mouse pointer on the column boundary you want to move and drag the boundary until the column is the width you want.


To restore initial column widths:

Click the Cells Size  button on the Format tab of the ribbon to open the Settings dialog box.

Select the Same width for all axis X columns option. The columns will be distributed evenly.

To change grid settings:

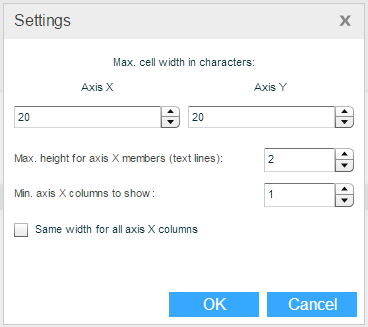

Click the Cells Size  button on the Format tab of the ribbon to open the Settings dialog box.

You can change the cell width for the X- and Y-axes in terms of number of characters. Necto performs automatic alignment according to the number of characters. If a value is longer than the maximum number of characters, word-wrapping will occur.

You can also change the cell height for X-axis members (for the text lines).
